Print with confidence even with the most demanding jobs

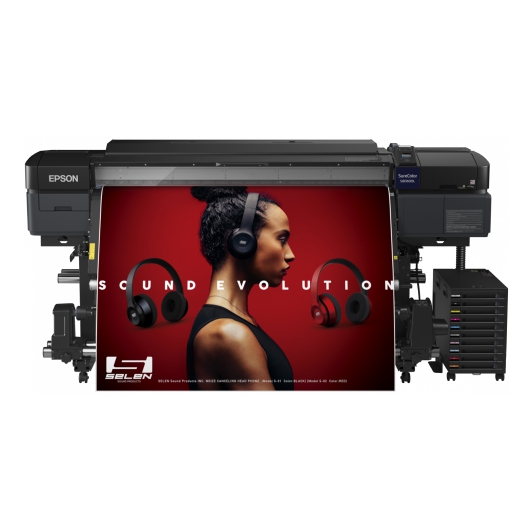

Epson SureColorTM SC-S80670L menawarkan gamut warna terluas untuk memenuhi pekerjaan yang paling menuntut untuk berbagai aplikasi dalam ruangan dan komersial dengan 10-warna UltraChromeTM Epson UltraChrome GS3 - dengan tinta Merah dan pilihan warna Putih atau Silver Metalik.
- Lebar hingga 64 inci dan ketebalan media 1,0 mm
- Teknologi tinta Epson UltraChromeTM GS3 dengan sertifikasi Merah - Greenguard Gold untuk emisi kimia rendah
Teknologi pencetakan:
PrecisionCore™ TFP® Printhead
Konfigurasi Nozzle:
360 x 1 x 2 nozel setiap warna (x10)
Resolusi Cetak Maksimum:
1440 x 1440 dpi
Area Cetak Maksimum:
Maksimum: 1.616mm
Margin Samping: 5mm (2 sisi)
Kecepatan Cetak
Colour (1 Layer)
Max Speed - 1 Pass: Up to 95.1 m2/h (360 x 720 dpi)
High Speed - 2 pass (Billboard): Up to 52.3 m2/h (720 x 720 dpi)
Production 1 - 4 pass: Up to 26.8 m2/h (720 x 720 dpi)
Production 2 - 6 pass: Up to 18.2 m2/h (720 x 720 dpi)
Colour, Colour + White (1 Layer)
High Quality - 8 pass: Up to 13.2 m2/h (720 x 720 dpi)
Max Quality 1 - 12 pass: Up to 8.8 m2/h (720 x 1440 dpi)
Max Quality 2 - 16 pass: Up to 6.8 m2/h (720 x 1440 dpi)
Max Quality 3 - 30 pass: Up to 3.7 m2/h (720x 1440 dpi)
Max Quality 4 - 48 pass: Up to 2.4m2/h (1440 x 1440 dpi)
Colour + Metallic Silver(1 Layer)
Production - 20 pass: Up to 4.2 m2/h (760 x 1440 dpi)
High Quality - 36 pass: Up to 2.3m2/h (1440 x 1440 dpi)
Colour + White (2 Layers)
Speed - 18 pass: Up to 6.4 m2/h (720 x 720 dpi)
Production - 32 pass: Up to 3.5 m2/h (720 x 1440 dpi)
High Quality - 48 pass: Up to 2.4 m2/h (1440 x 1440 dpi)
Colour + Metallic Silver (2 Layers)
Production - 40 pass: Up to 1.9 m2/h (720 x 720 dpi)
High Quality - 72 pass: Up to 1.1 m2/h (1440 x 1440 dpi
Colour + White (3 Layers)
Speed - 27 pass: Up to 3.2 m2/h (720 x 720 dpi)
Production - 48 pass: Up to 1.7 m2/h (760 x 1440 dpi)
High Quality - 72 pass: Up to 1.1 m2/h (1440 x 1440 dpi)
Tipe Tinta:
Epson UltraChromeTM GS3 Ink Technology with Red
Ukuran Tetesan Tinta Minimum:
4.2pl
Kapasitas Tinta:
1500 ml (except Metallic Silver 500ml)
Konfigurasi Tinta:
11 warna - Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange, Red, White, Metallic Silver
Lebar Media:
300 hingga 1626mm
Ketebalan Media:
hingga 1 mm
Roll Outer Diameter:
Up to 250mm
Reel Outer Diameter:
Up to 200 mm
Roll Weight:
Up to 45 Kg
Left / Right Margins:
5 mm each side (10 mm when using Media Holding Plates)
Paper Handling:
Rear roll feed (2 " / 3 " core with max 250 mm diameter and up to 45 kg); Auto take-up reel
Auto Take Up:
Standard
Supported Media Sizes:
Roll Paper Width: 11.8" (300mm) to 64" (1626mm)
Heaters:
Pre- and Platen- Heater (30 to 50 °C); After-Heater (30 to 55 °C)
Operating Systems:
Windows Vista/7/8/8.1/10 (64bit) or later, Mac OS 10.6 or later
Dimensions:
WPrinter Storage: 2,766 x 880 x 1,338 mm (W x D x H)
Ink Bulk System: 423 x 650 x 548 mm (W x D x H)
Operating Temperature:
15 to 35 °C (20 to 32°C recommended))
Operating Humidity:
20 to 80% RH (40 to 60% recommended)
Weight:
Printer: Approx. 326 kg (without inks)
Ink Bulk System: Approx. 53kg (without inks)
Memory:
Printer: 512MB; Network: 128MB
Bundled Items:
Bulk Ink Solution 1 (C12C934631)
Substrate Support System (C12C932361)
Starter Kit (1 set of inks) (C13T45P100E2)
Printer Language::
Standard: ESC/P raster
Control Panel:
2.7" Colour LCD
Interfaces:
Hi-Speed USB, 100BASE-TX / 1000BASE-T
Power Consumption:
Operating: Approx. 640 W
Ready: Approx. 400 W
Sleep: Approx. 24 W
Power Off: 1.5W
Power Requirements:
AC 100-120V or 200-240V 50/60Hz
Rated Current:
10A (AC100-120V) 5A (AC200-240V)
Power Supply:
Direct from printer
Connectivity:
Included Software:
Windows, CD Installer, Communication Driver, EPSON Manuals Launcher, Operators Guides, General Information, Epson Edge Dashboard, EpsonNet Config, EpsonNet Setup, EpsonNet Print, Epson Software Updater, Epson Edge Print
